Specifications
| Main Color | Black |
| Main Material | Aluminium |

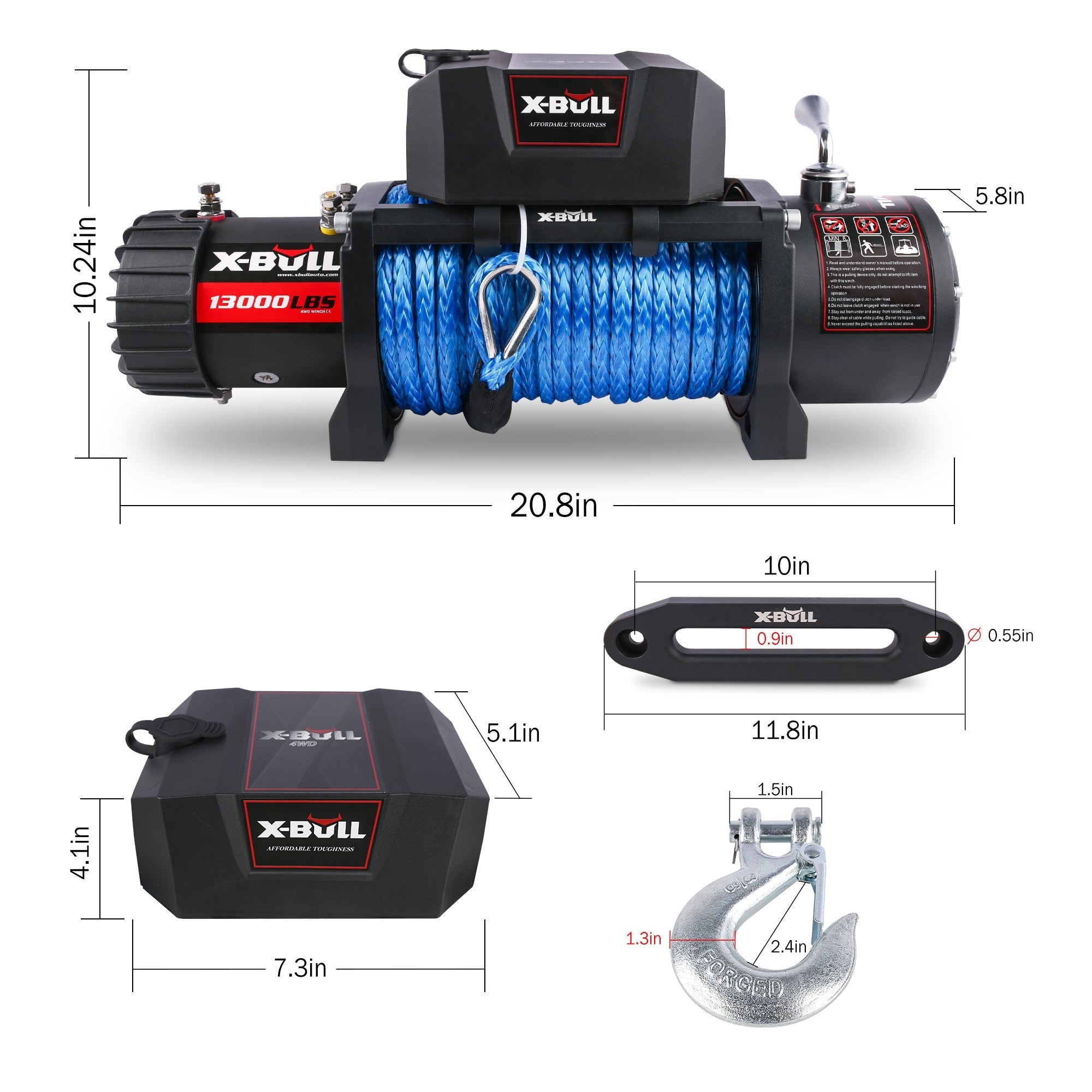

Dimensions & Weights
| Assembled Length (in.) | 23.60 |
| Assembled Width (in.) | 13.30 |
| Assembled Height (in.) | 9.60 |
| Weight (lbs) | 55.00 |
Product Features
- 1.Synthetic Rope has good resistance to bending fatigue, abrasion resistance, UV protection and chemical resistance. Synthetic Rope is safer than steel,when the rope breaks.
- 2. Efficient and durable 3-stage planetary steel gear provides greater traction for the 6.0HP series motors.
- 3. Ease-of-use and to turn, handle clutch fits perfectly in the hand even when wearing winching gloves.
- 4. The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).
Description
Description
Rated Line Pull: 13000 lbs

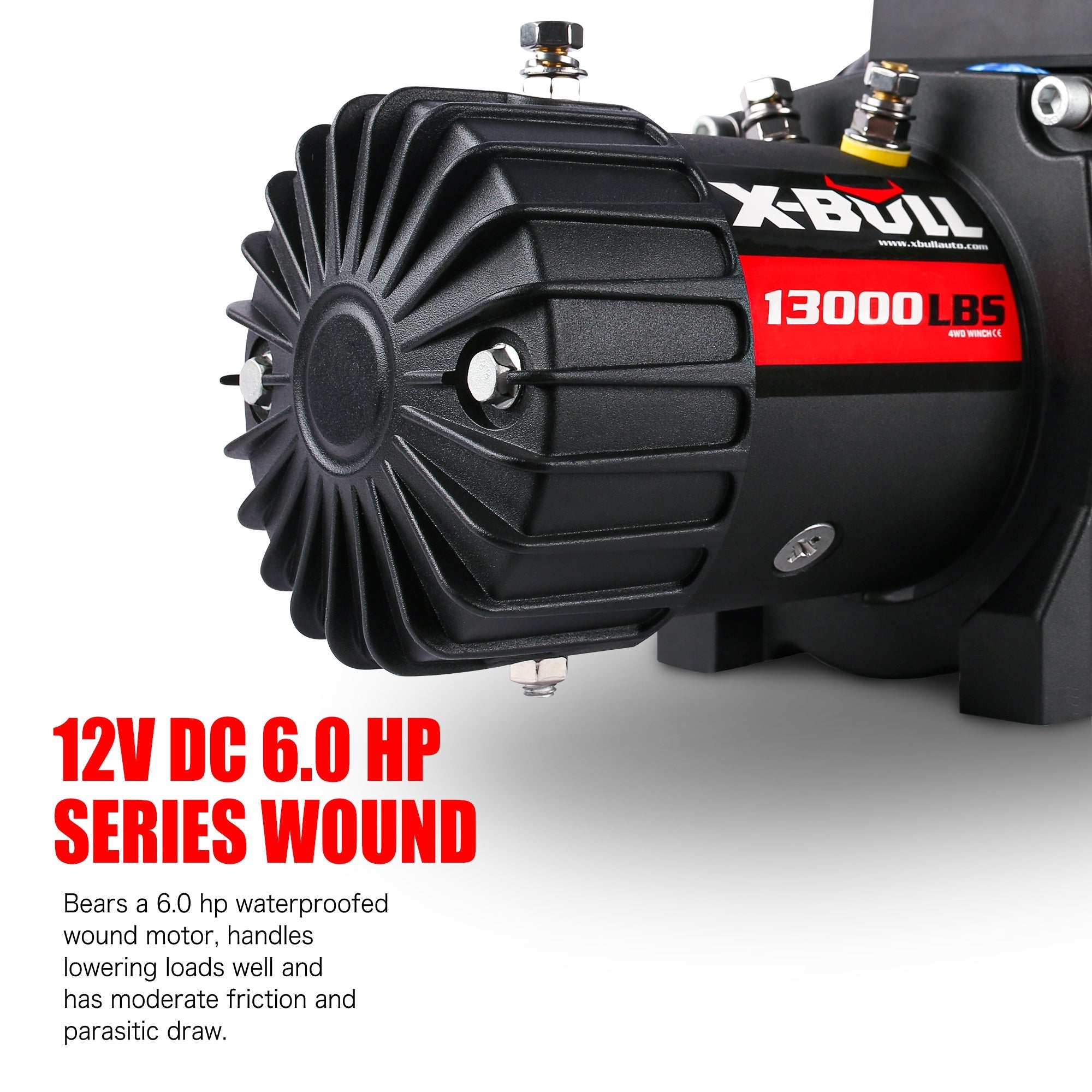

Motor: 6.0hp

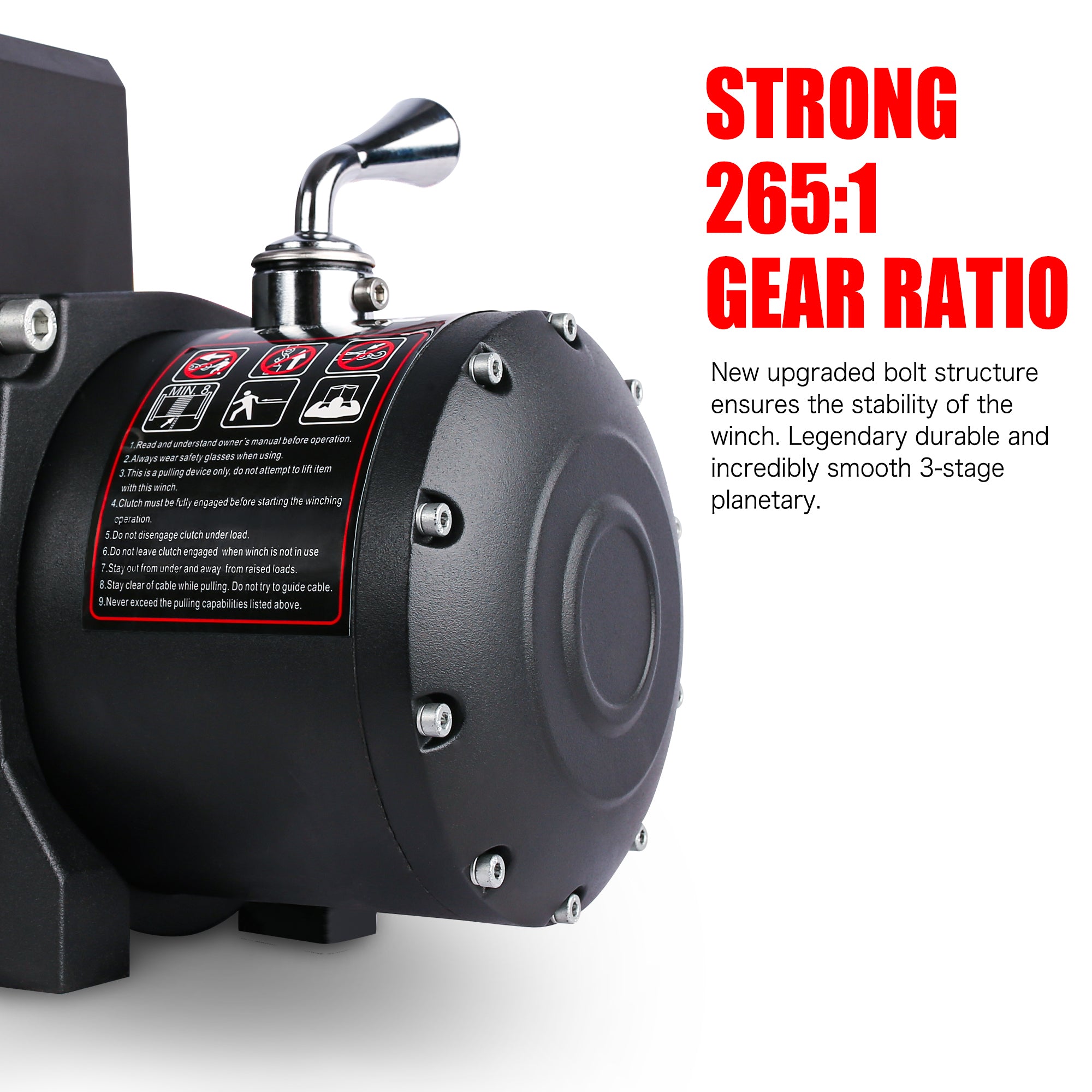

Gear Ratio: 265:1
Recommended Battery: 650CCA Minimum
Remote Control:1 PC Wireless Control / 1 PC Wire Control
Control: Remote Switch,12ft(3.7m)Lead

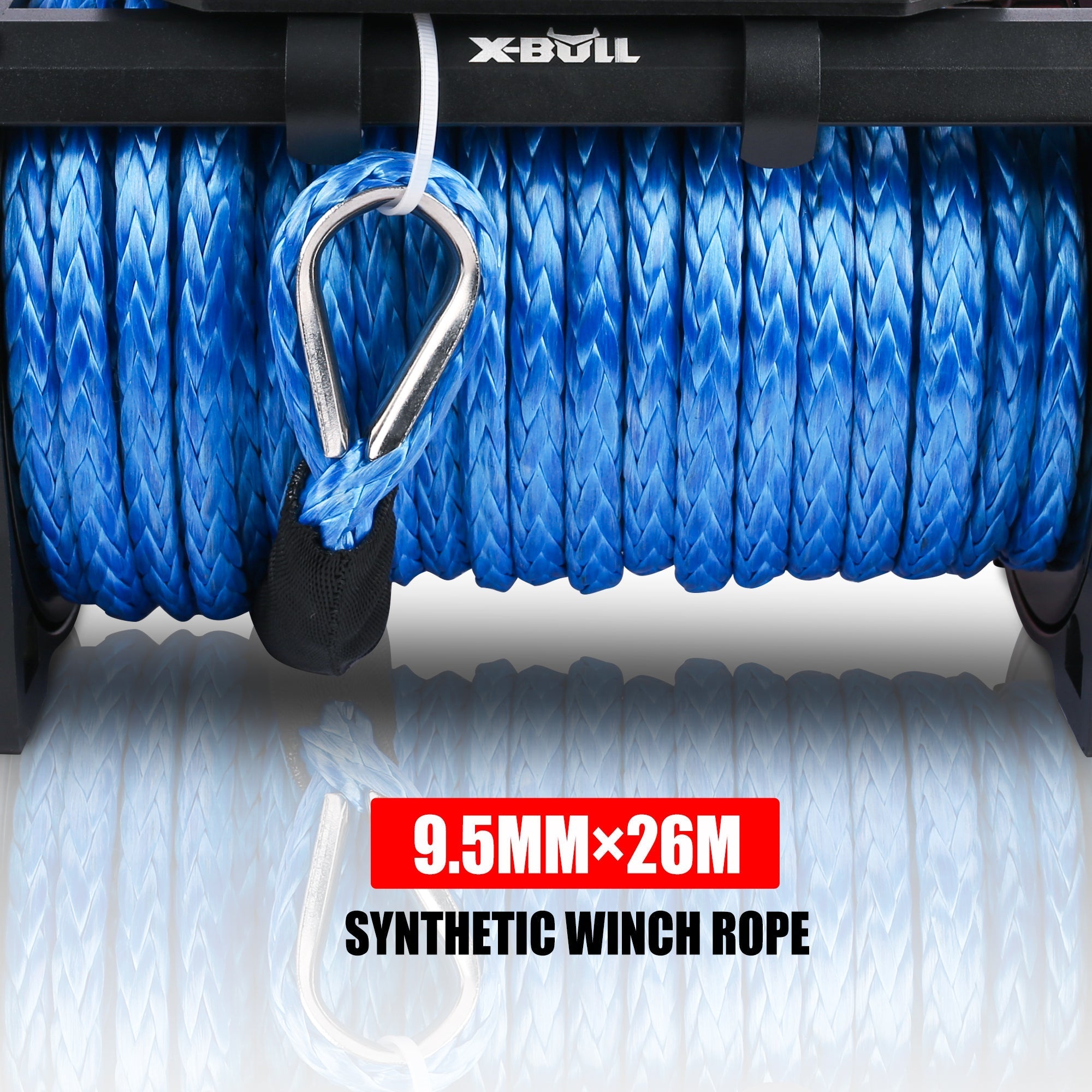

Cable Length: 9.5mm x 26m
Gear Train: 3 Stage planetary
Battery Leader: 2gauge,72"(1.83m)
Fairlead: Aluminium Hawse Fairlead
Weight: 59.5lbs (27.0Kgs)
Material: Stainless Steel
Brake: Automatic Load-Holding Brake
Drum Size: 2.52" × 8.82" (64mm × 224mm)
Mounting Bolt Pattern: 10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)
Cable Material:Synthetic Rope
Dimensions: 530mm×160mm×218mm

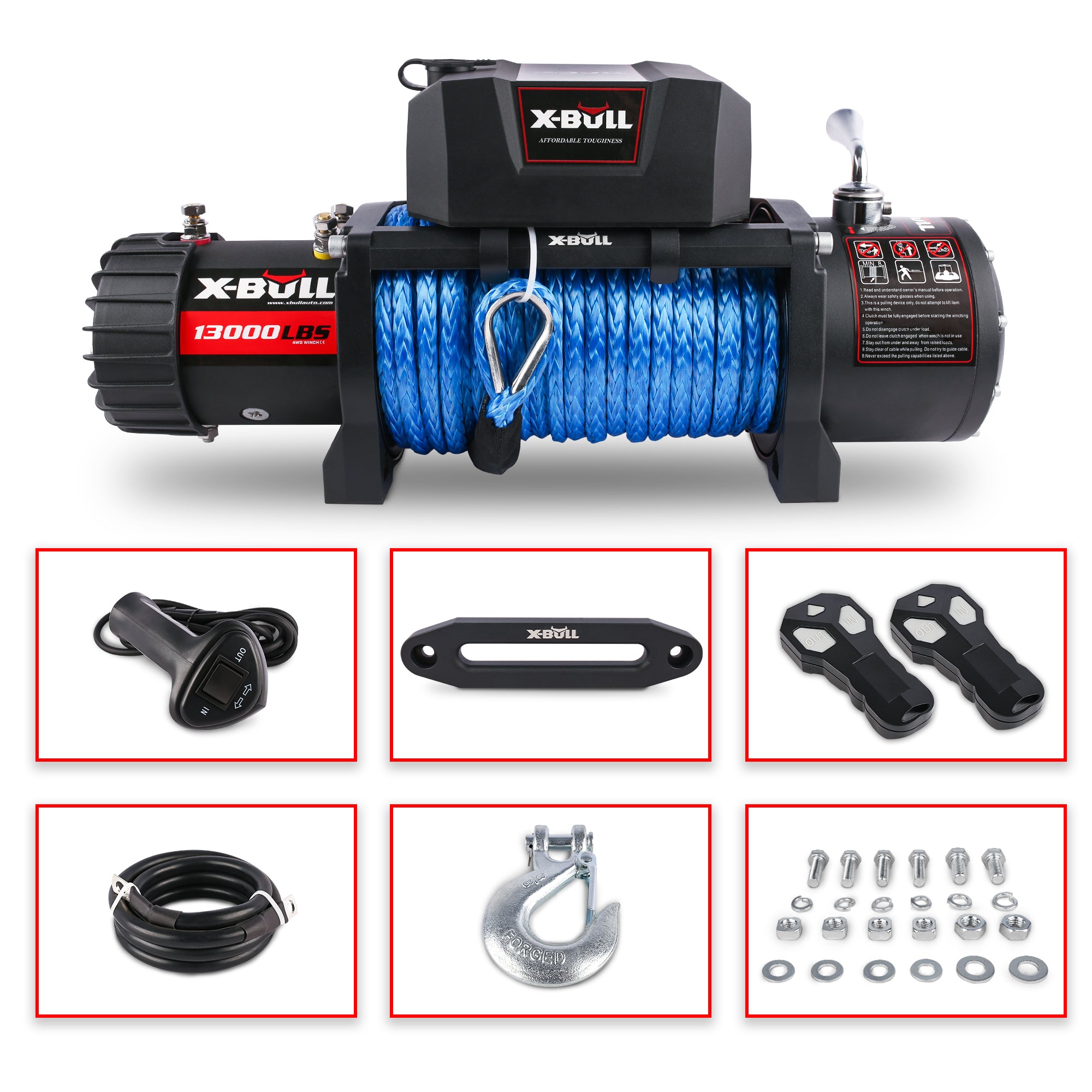

IN THE BOX
13000LBS DC 12V Winch × 1
Hammer Forged Hook × 1
Set of Bolts × 1
Set of Wire Cables × 1
Wireless Remote Controller × 1
Hand Remote Controller × 1
User Manual × 1
Aluminium Hawse Fairlead × 1
Advantages of Dyneema rope
The weight of the Dyneema rope is 1/10 of the weight of the steel rope.It reduces the weight of the winch by about 20 pounds
The strength of the Dyneema rope is 10 times that of the steel rope
Dyneema rope has good resistance to bending fatigue, abrasion resistance,weather resistance,UV protection and chemical resistance
Dyneema rope is safer than steel,when the rope breaks
